CM car industry series high-frequency welding tube mill line is designed to produce round pipe ,square pipe and rectangular pipe . Adopting roll pass design, the production line can manufacture welded steel pipes with good quality machining and high precision assembling.




Main technical Parameters :

No.ItemQG32QG50QG60
1Round pipe O.DФ10~32mmФ16~63.5mmФ22~76mm
2Round pipe W.T0.5~2.0mm0.8~3.0mm1.0~3.0mm
3Square pipe8×8~25×25mm13×13~50×50mm17×17~60×60mm
4Square pipe W.T0.5~1.4mm0.8~2.0mm1.0~2.5mm
5Milling speed30~80m/min30~70m/min30~70m/min
6Main motor45KW×275KW×290KW×2
7H.F power150KW200KW250KW



Steel strip Specification



No.ItemWorking range
1Raw MaterialQ235,Q345,CR steel strip
2Thickness of strip0.5~3.0mm
3Width of strip30~240mm
4External diameter of stripФ800~1500mm
5Internal diameter of stripФ450~550mm
6Weight of strip2500KG

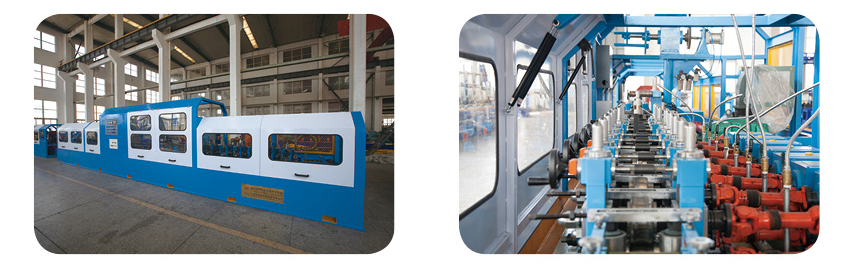

Sizing Section Function:  sizing the tube to precise size



Advantage:

1.Advanced sizing technical

2.One-stage molding platform

3.Reliable quality gear box and Siemens Beide motor

4.High precision, low error of the pipe size

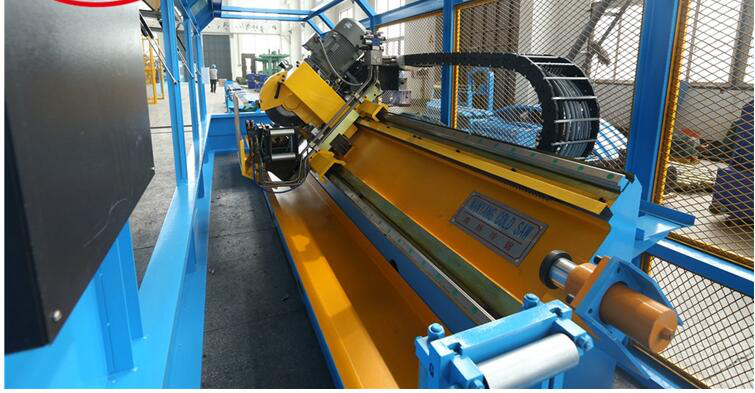

Cold saw: no noise, no burr cutting precision and cross section.
