Industry Stainless Steel Tube Mill Line is designed for manufacturing stainless steel straight welded pipe for construction, transportation, metallurgy , and machinery and vehicle industries. It adopts long steel strip as the material to manufacture steel pipes according to requested size by cold rolled forming and argon arc welding method. To be specific, the stainless steel pipe production line can produce round pipe, square and rectangular tube, as well as section steel through cold rolled forming and TIG welding technology.



Main technical Parameters

1Round pipe O.DФ10~32mmФ12~38mmФ16~50.8mmФ25~76mmФ25~80mmФ38~114mmФ76~168mmФ114~219mm
2Round pipe W.T0.3~1.5mm0.4~2.0mm0.6~3.0mm1.0~3.5mm1.5~5.0mm1.5~6.0mm1.5~8.0mm2.0~10mm
3Milling speed1~8m/min0.5~6 m/min0.4~5 m/min0.4~4 m/min0.3~3 m/min0.3~3 m/min0.3~3 m/min0.2~2 m/min
4Main motor11KW×311KW×315KW×322KW×330KW×337KW×345KW×355KW×3



Line technological process:



Raw material → Uncoiling → cut and butt welding → Accumulator → Leveling → Forming → TIGwelder→ Cooling → Polishing → Sizing →Annealing→Straightening → Fixed length cutting → Finished pipe collecting



Details of several parts wholes line


Uncoiler :


Function: support rolled plate and strip tension for erw pipe mill production line, by the frame, main shaft, increases of drum, brake.


There are 3 types: pneumatic, hydraulic and manual.

20220310144453156.png@!w1200

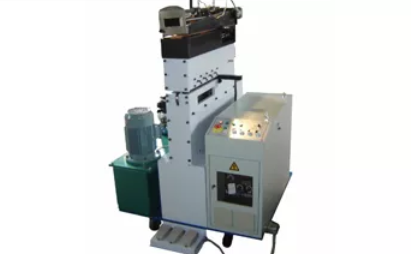

Cut butt welding 2 Types: Automatic & Manual


Shear the end of each strip coil, then welding them together, so that pipe making welding machine line can be continue production.


 20220310144450177.png@!w1200

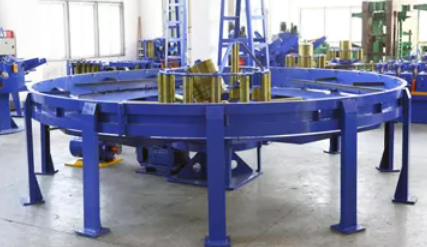

Strip Accumulator


Function: storage strip to keep continue production2 Types: Horizontal / Vertical

 20220310144450881.png@!w1200

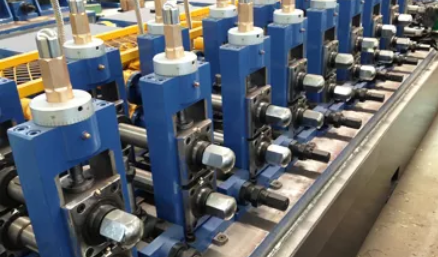

Forming SectionFunction:



 forming the tube from strip Advantage:A.Advanced forming technicalB.One-stage molding platformC.Reliable quality gear boxD.Siemens Beide motor

 20220310144451892.png@!w1200

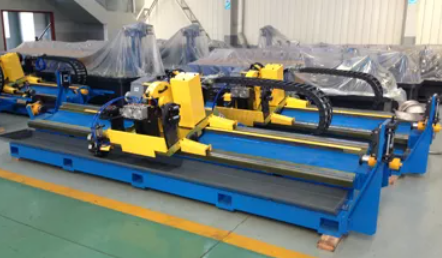

Flying saw / Cold Saw Function:


cutting the tube mill line tube to right length. Fly saw: easy to operation, low investmentCold saw: no noise, no burr cutting precision and cross section.

 20220310144451353.png@!w1200



Advantages of production line :



1. Easy and safe to operate;

2. low maintenance, and cost reduction, reducing and high production;

3. One time for production of stainless steel pipe, which allows flatting, forming, welding, annealing, polishing, sizing, straightening, finishing, cutting, and unloading.

Industry Stainless Steel Tube Mill Line is designed for manufacturing stainless steel straight welded pipe for construction, transportation, metallurgy , and machinery and vehicle industries.
It adopts long steel strip as the material to manufacture steel pipes according to requested size by cold rolled forming and argon arc welding method. To be specific, the stainless steel pipe production line can produce round pipe, square and rectangular tube, as well as section steel through cold rolled forming and TIG welding technology.
